MATLAB Simulation of V2G and G2V Operation with Three-Phase Grid | dq Control | LCL Filter | SOC Tracking

Experience a complete bidirectional EV–Grid interaction model built in MATLAB/Simulink, featuring Vehicle-to-Grid (V2G) and Grid-to-Vehicle (G2V) operations using dq-axis feed-forward decoupled control. This professional simulation model is ideal for M.Tech/PhD scholars, EV researchers, and power-electronics engineers working on smart grid integration, EV chargers, and inverter control.

🚗⚡ Product Description

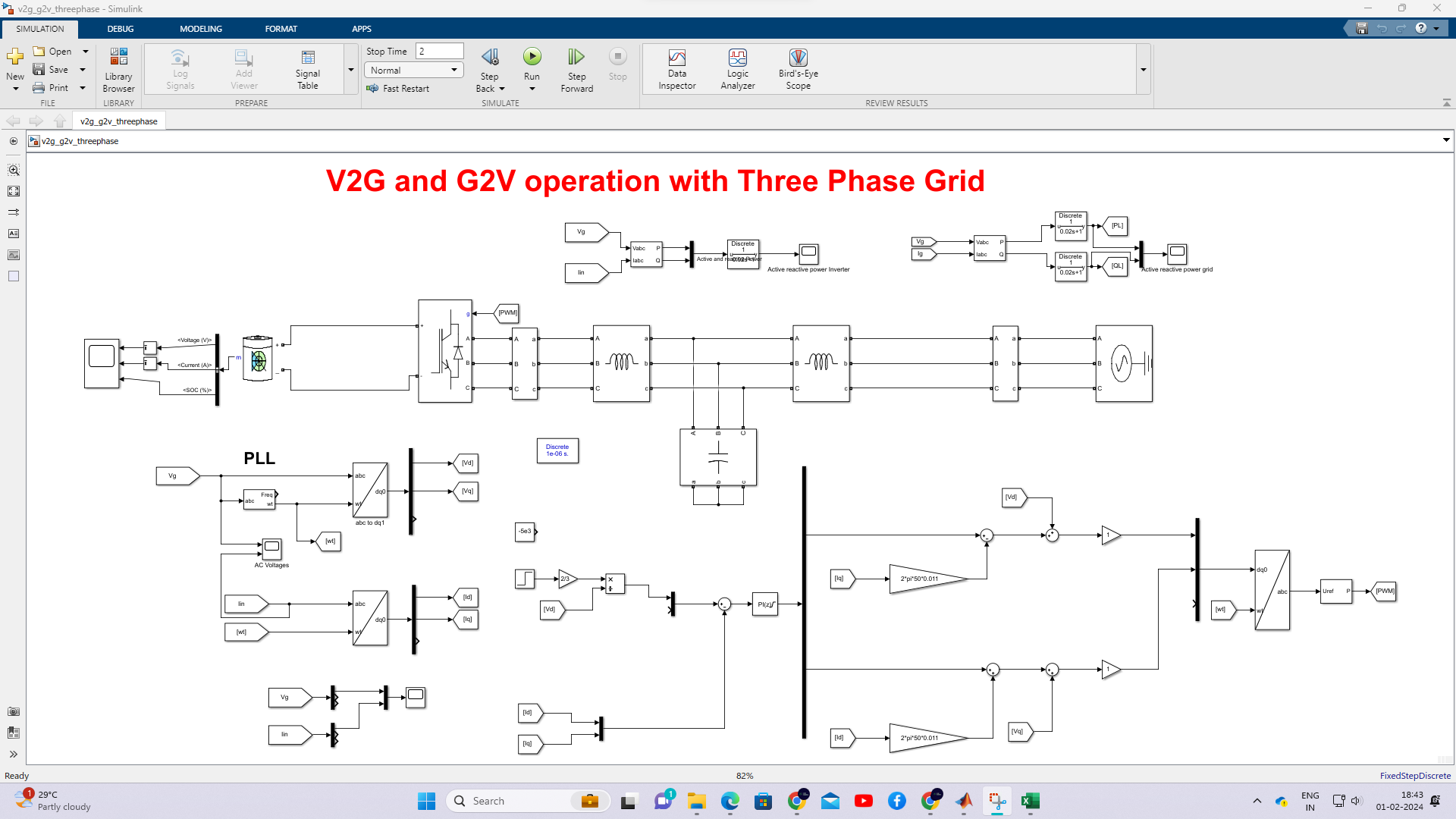

This advanced Simulink model demonstrates seamless bidirectional power transfer between an Electric Vehicle (EV) battery and a three-phase grid using an LCL-filtered Voltage Source Inverter (VSI). The model implements synchronous dq-frame current control, ensuring:

Stable real and reactive power regulation
Unity power factor
Smooth charging/discharging transitions
Low THD grid-connected current

The control strategy uses feed-forward decoupling, PI controllers, Park transformation, PWM modulation, and a dynamic SOC estimation module. The system is validated under V2G, G2V, and dynamic mode-transition scenarios.

This ready-to-use model is fully editable and perfectly suited for EV smart charger research.

🔧 Key Features

✔️ Complete Three-Phase EV Grid Interface

1000 V DC-link EV battery
400 V three-phase utility grid
Bidirectional DC–AC VSI
LCL filter for harmonic suppression
SOC estimation module

✔️ dq-Axis Control Architecture

Park transformation (abc → dq0)
PI controllers for Id and Iq
Unity power factor control (Iq = 0)
Active power regulation using Idref

✔️ Feed-Forward Decoupling

Eliminates coupling between dq currents
Ensures fast dynamic response
Enables smooth V2G ↔ G2V switching

✔️ System Performance

THD < 2% (IEEE-519 compliant)
PF ≈ 1.0
Fast transition between charging and discharging
Accurate SOC tracking based on battery current


📁 What You Receive
✔️ Complete MATLAB/Simulink model (.slx)
✔️ Well-structured subsystems for easy editing
